Zeiss Front Lens Attachment Systems for Carl Zeiss Microscopy Stemi DV4 Stereo Microscope
Tap Tap to Zoom
Product No Longer Available
Unfortunately Zeiss Front Lens Attachment Systems for Carl Zeiss Microscopy Stemi DV4 Stereo Microscope is not listed by Microscopes.You can also explore other items in the Microscope Accessories yourself to try and find the perfect replacement for you!
Product Info for Zeiss Front Lens Attachment Systems for Carl Zeiss Microscopy Stemi DV4 Stereo Microscope
Carl Zeiss Microscopy Zoom Front Lens Attachment Systems are a reliable and compatible addition to the Carl Zeiss Microscopy Stemi DV4 Stereomicroscope and other stereo microscopes. The Zoom Front Lens Systems by Carl Zeiss Microscopy will enhance the resolution and guarantee sharp, in-focus images throughout the zoom range.
Carl Zeiss Microscopy has a range of well chosen Zeiss Microscope Accessories to make the Stemi DV4 Stereomicroscope an even more attractive option for a whole range of applications, all available for sale at our online store. For a more larger selection of other microscopes on sale, check out the Microscope Accessories and microscope accessories section for further enhancements and compatible solutions.
Available Options for Carl Zeiss Microscopy Front Lens Attachment Systems for Stereo Microscopes

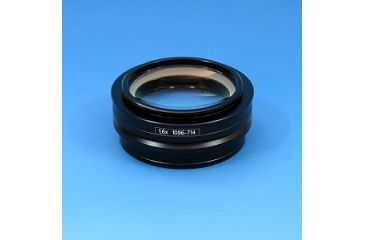

- 000000-1096714000: Zeiss Microscopy Front Lens System 1.6x Working Distance = 48mm

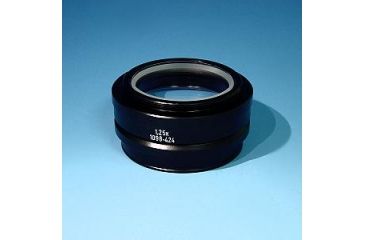

- 000000-1098424000: Carl Zeiss Microscopy Front Lens System 1.25x Working Distance = 60mm

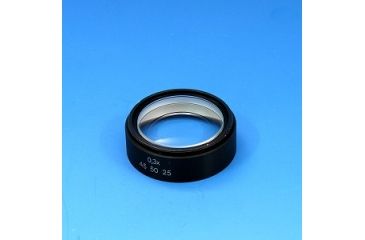

- 455025-0000-000: Zeiss Microscopy Front Lens System 0.3x Working Distance = 287mm

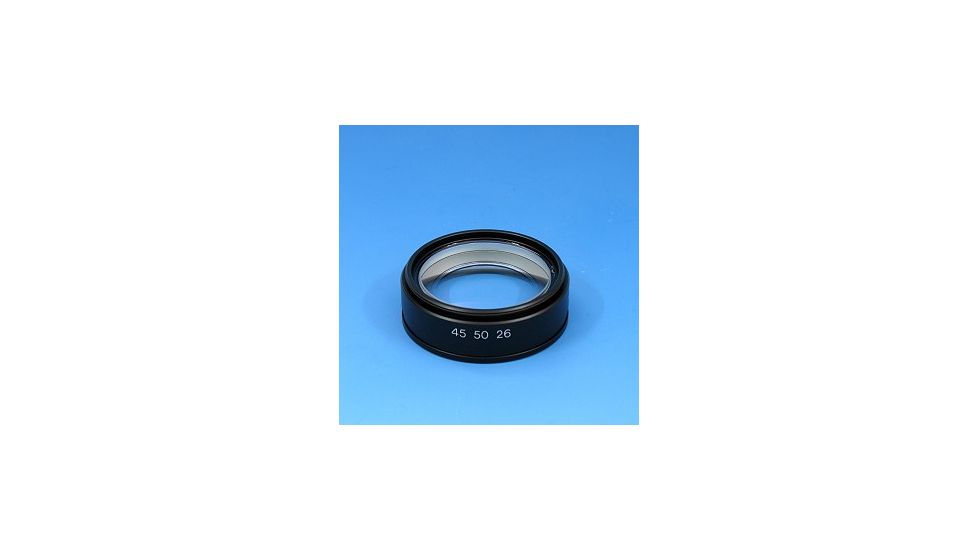

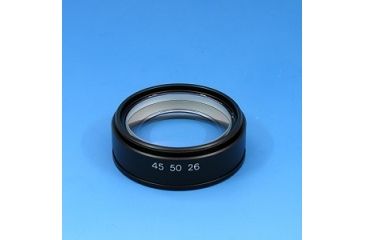

- 455026-0000-000: Carl Zeiss Microscopy Front Lens System 0.4x Working Distance = 211mm

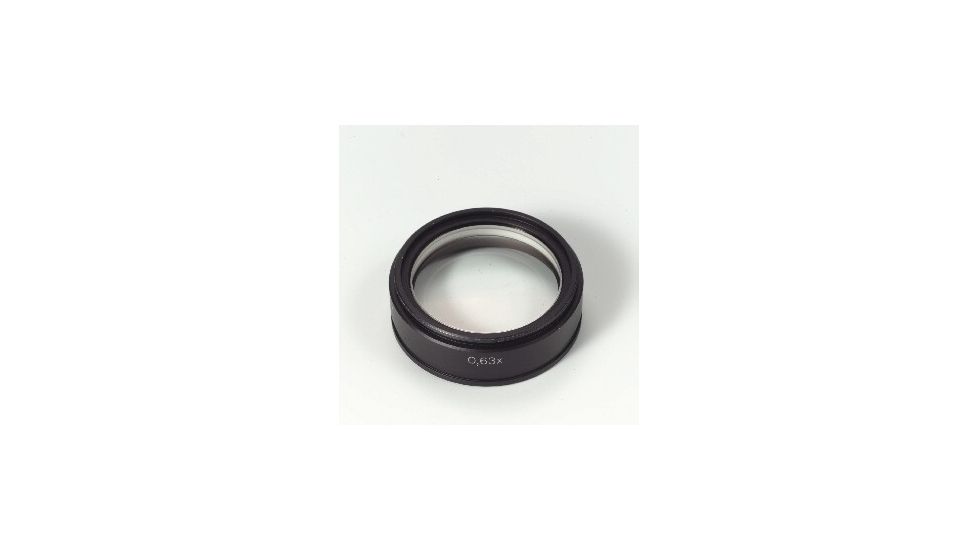

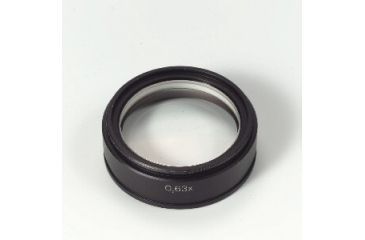

- 455027-0000-000: Carl Zeiss Microscopy Front Lens System 0.63x Working Distance = 130mm

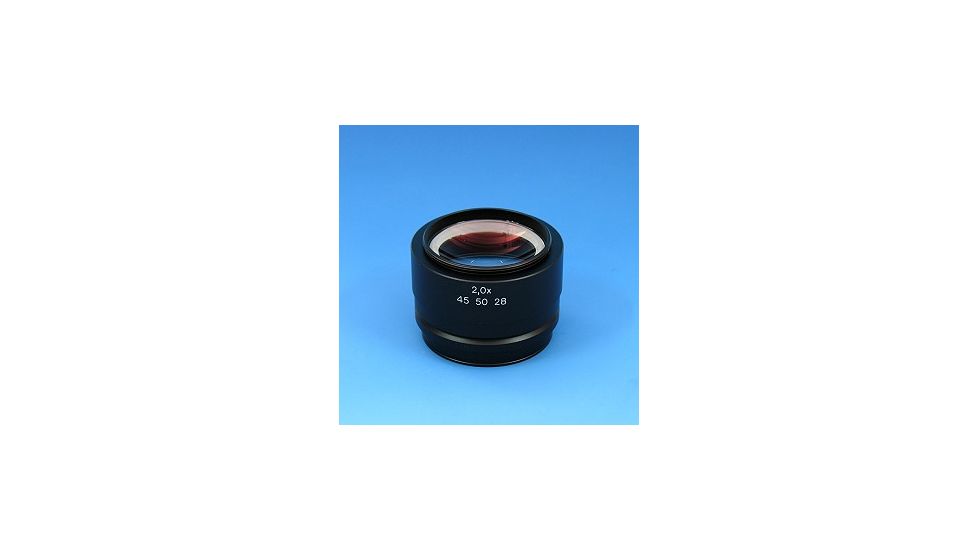

- 455028-0000-000: Carl Zeiss Microscopy Front Lens System 2.0x Working Distance = 31mm
Specifications for Carl Zeiss Microscopy Front Lens System Attachments for Stemi DV4 Stereomicroscope - Eyepiece 10x/20 Br. foc.
|
Front lens system
|
Eyepiece 10x/20 Br. foc.
|
||
|---|---|---|---|
|
Factor
|
Free Working Distance (mm)
|
Magnification
|
Object field (mm)
|
|
0,3x
|
287
|
2,4x ... 9,6x
|
83,3 ... 20,8
|
|
0,4x
|
211
|
3,2x ... 12,8x
|
62,5 ... 15,6
|
|
0,3x ... 0,5x
|
233 ... 90
|
2,4x ... 16,0x
|
39,7 ... 12,5
|
|
0,63x
|
130
|
5,0x ... 20,2x
|
40,0 ... 9,9
|
|
without
|
92
|
8,0x ... 32,0x
|
25,0 ... 6,3
|
|
1,25x
|
60
|
10,0x ... 40,0x
|
20,0 ... 5,0
|
|
1,6x
|
48
|
12,8x ... 51,2x
|
15,6 ... 3,9
|
|
2x
|
31
|
16,0x ... 64,0x
|
12,5 ... 3,1
|
Specifications for Carl Zeiss Microscopy Front Lens System Attachments for Stemi DV4 Stereomicroscope - Eyepiece 15x/13 Br. foc.
|
Front lens system
|
Eyepiece 15x/13 Br. foc.
|
||
|---|---|---|---|
|
Factor
|
Free Working Distance (mm)
|
Magnification
|
Object field (mm)
|
|
0,3x
|
287
|
3,6x ... 14,4x
|
55,4 ... 13,9
|
|
0,4x
|
211
|
7,6x ... 30,2x
|
41,6 ... 10,4
|
|
0,3x ... 0,5x
|
233 ... 90
|
3,6x ... 24,0x
|
55,4 ... 8,3
|
|
0,63x
|
130
|
7,5x ... 30,3x
|
26,4 ... 6,6
|
|
without
|
92
|
12,0x ... 48,0x
|
16,6 ... 4,2
|
|
1,25x
|
60
|
15,0x ... 60,0x
|
13,3 ... 3,3
|
|
1,6x
|
48
|
19,2x ... 76,8x
|
10,4 ... 2,6
|
|
2x
|
31
|
24,0x ... 96,0x
|
8,3 ... 2,1
|
Features of Carl Zeiss Microscopy Stemi DV4 Stereo Microscope Front Lenses
- Compatible with Stemi DV4 Stereo Microscope and other stereomicroscopes
Package Content
- Carl Zeiss Microscopy Front Lens Attachment for Carl Zeiss Microscopy Stemi DV4 Stereo Microscope
