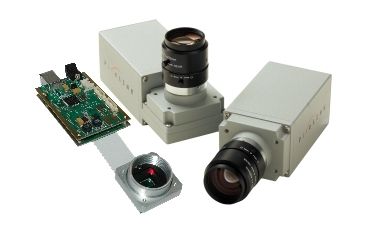

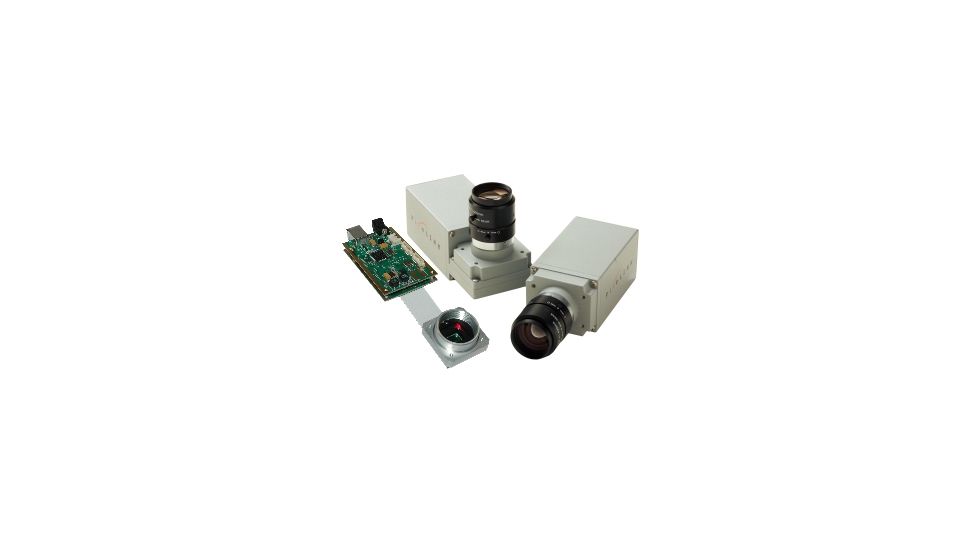

PixeLINK PL-B741E 1.3MP Monochrome Industrial Camera 05892-04

PixeLINK PL-B741EF-BL Firewire 1.3 MP Monochrome Industrial Board Level Camera w/ no Case 05893-04
PixeLINK PL-B741EF-BL Firewire 1.3 MP Monochrome Industrial Board Level Camera w/ no Case 05893-04
1 of 1 images
PixeLINK PL-B741EF-BL Firewire 1.3 MP Monochrome Industrial Board Level Camera w/ no Case 05893-04

Tap Tap to Zoom

Product No Longer Available

Unfortunately PixeLINK PL-B741E 1.3MP Monochrome Industrial Camera 05892-04 is not listed by Microscopes.You can also explore other items in the Microscope Cameras yourself to try and find the perfect replacement for you!

Product Info for PixeLINK PL-B741E 1.3MP Monochrome Industrial Camera 05892-04

The Pixelink PL-B741E Monochrome Digital Industrial Camera is a high performance 1.3 megapixel monochrome camera designed for a broad range of industrial imaging applications. This Digital Camera from PixeLINK offers excellent responsivity in the Near-IR from 700 nm to 1000 nm. The PixeLink Monochrome PL-B741E Industrial Digital Camera is based on the Cypress IBIS5E CMOS global shutter progressive scan sensor with a 2/3in optical format and 27 fps output. This Pixelink Camera is built with factory calibrated Digital Pixel Correction and on-board Flat Field Correction (FFC) to provide you with an image quality similar to high-end CCD cameras. For a great way to capture the images you need to with perfect, high resolution quality, choose the PixeLink Industrial Monochrome Digital PL-B741E Camera.

Specifications for Pixel-Link PL-B741E Digital Industrial Camera - Monochrome:

Bit Depth: 8 & 10
Color: Mono
Configuration: Right Angle, Board Level, Standard
Frame Rate: 27
Interface: USB 2.0, Firewire A, GigE
Lens Mount: CS-Mount, C-Mount
Resolution: 1280 x 1024 (1.3MP)
Sensor Size: 2/3
Sensor Type: CMOS
Shutter Type: Global
Triggering Options: Manual & Software

Features of Pixelink PLB741E industrial Digital Camera:

  • Programmable LUT and FFC(Flat Field Correction)
  • Defect pixel correction
  • Mono 8 and Mono 16
  • Auto exposure and auto white balance
  • Binning, Decimation and Averaging
  • Image Flip and Image Rotate
  • ROI (Region of Interest Readout)
  • Saturation, sharpness and Brightness (color versions)
  • Gain
  • Gamma
  • Color temperature
  • Frame Rate control

Package Contents:

  • Pixelink PL-B741E Monochrome Digital Industrial Camera
