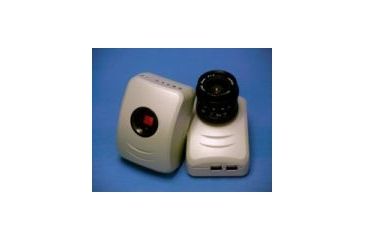

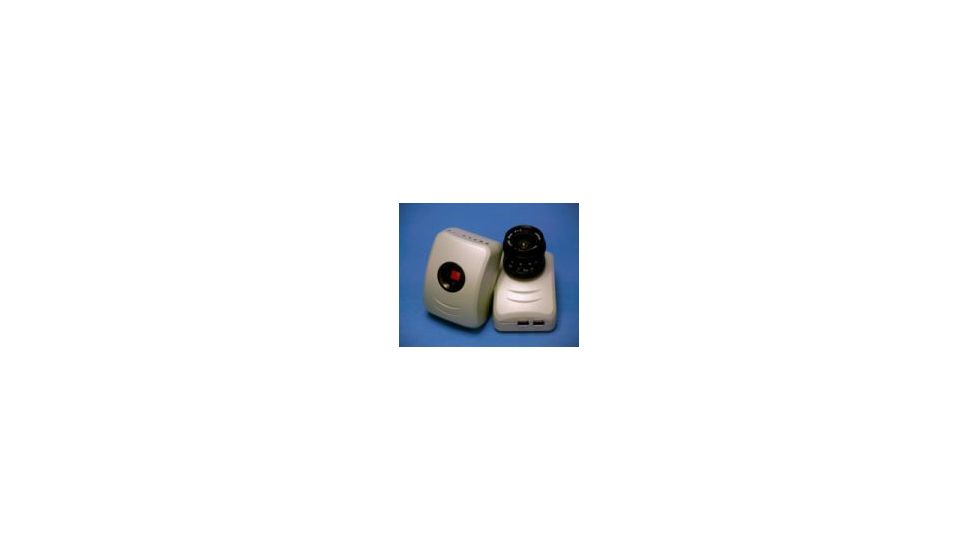

PixeLINK PL-A662-KIT Machine Vision Microscope Camera Kit 03956-21
Tap Tap to Zoom
Product No Longer Available
Unfortunately PixeLINK PL-A662-KIT Machine Vision Microscope Camera Kit 03956-21 is not listed by Microscopes.You can also explore other items in the Microscope Cameras yourself to try and find the perfect replacement for you!
Product Info for PixeLINK PL-A662-KIT Machine Vision Microscope Camera Kit 03956-21
Designed to simplify real-time uncompressed video display and digital image acquisition, the PixeLINK Machine Vision PL-A662-KIT Color Digital Camera 03956-21, provides uncompromising video and digital still-image quality in an easy to use package. This Digital Camera from the professional product experts at PixeLINK, offer high-resolution megapixel capability with the convenience of FireWire (IEEE 1394) to capture low latency video streams and digital still images. The PixeLINK Color PLA662 Machine Vision Digital FireWire Camera is encased in a rugged yet lightweight magnesium housing, that ensures a durable and long lasting camera. This PixeLINK Digital Camera has a FireWire digital interface that simplifies installation and eliminates the need for frame-grabbers. The PixeLINK PLA662 Digital Color FireWire Machine Vision Camera is made with a flexible and full-featured CMOS image sensor with high resolution 1.3-megapixel array (1280 x 1024 pixels), for incredibly clear and vivid images.
Specifications for PixeLINK Digital FireWire Color Camera Machine Vision PL-A662 Kit:
| Type: | 1/2" Kodak KAC-1310 1.3-megapixel CMOS |
| Resolution: | 1280 x 1024 active pixels |
| Pixel Size: | 6.0 UM x 6.0 UM, square |
| Array Dimensions: | 7.68 mm x 6.14 mm |
| Frame Rate, in FPS, 8-Bit Pixels @ 16 MHz: | 320 x 240 - 176, 640 x 480 - 48, 800 x 600 - 31, 1024 x 768 - 20, 1280 x 1024 11.4 |
| Color Mosaic: | RGB Bayer with standard microlenses (PL-A662) |
| Shutter: | Continuous and single frame rolling shutter capture |
| Gamma: | Software programmable |
| Optical Fill-Factor: | 40% mono / 64% color |
| Saturation Signal: | 40,000 electrons |
| Quantum Efficiency: | 38% peak RGB |
| Responsivity: | 0.6 V/Lux-sec peak RGB |
| Total Dark Noise: | 70 e- rms |
| Dark Current: | 6250 e-/pixel/sec |
| Dark Current Doubling Temperature: | 9°C |
| Dynamic Range: | > 54dB |
| Voltage: | 8 V"C30 V DC |
| Power: | 3 W typ. (250 mA at 12 V, supplied by FireWire cable) |
| Operating Temp: | +5°C to +60°C |
| Lens mount: | C-mount lens adapter |
| Weight: | 175 g (without lens) |
| Compliance: | FCC Class B; CE |
| Camera Housing: | Magnesium |
| Operating System: | Windows 98 SE, 2000 and XP |
| Data Format: | 8-bit or 10-bit, uncompressed |
| Interface Type: | 2, 6-pin FireWire ports (400 Mbits/s) |
| Max. Data Rate: | 24 Mbytes per second |
Features of PixeLINK Machine Vision PLA662 Digital Camera Kit:
- Requires Microprocessor w/ Minimum - 450 MHz Pentium III or equivalent, Recommended - 1.5 GHz Pentium 4 or equivalent, 128 MB system RAM, 25 MB hard drive free space, Video card with 24 or 32 bit True Color graphics, 8 MB of video memory
- Includes Megapixel FireWire, Camera (no lens provided), FireWire adapter card, FireWire cable, Quick Start installation card, Camera Kit software, Windows 98 SE, 2000 and XP Drivers, TWAIN interface, Application PixeLINK Capture, Online User's Manual, Warranty card
- Designed to simplify real-time uncompressed video streaming and digital still image acquisition while maintaining uncompromising video and digital still-image quality
- FireWire cable can manage power distribution, PC-based control and real-time video streaming capabilities of the Camera
- All-in-one megapixel FireWire C-mount cameras
- Stream uncompressed video or capture still images
- FireWire digital interface simplifies installation and eliminates the need for framegrabbers
- Flexible and full-featured CMOS image sensor with high resolution 1.3-megapixel array (1280 x 1024 pixels)
- Up to 12.7 fps at 1280 x 1024 resolution, 60 fps at 640 x 480
- FireWire cable carries video data, control signals and power - no additional cables required.
- Includes application (PixeLINK Capture), providing controls for; Gamma correction, signal gain, exposure time, Imager subwindow size and position, Image flip and mirror, Choice of 8-bit or 10-bit data and data rate
- Supports 3rd party software applications via industry-standard
- interface protocols; DirectShow, TWAIN
Package Contents:
- PixeLINK PL-A662-KIT Machine Vision Color Digital Camera 03956-21
- Megapixel FireWire
- Camera (no lens provided)
- FireWire adapter card
- FireWire cable
- Quick Start installation card
- Camera Kit software
- Windows 98 SE
- 2000 and XP Drivers
- TWAIN interface
- Application PixeLINK Capture
- Online User's Manual
- Warranty card
