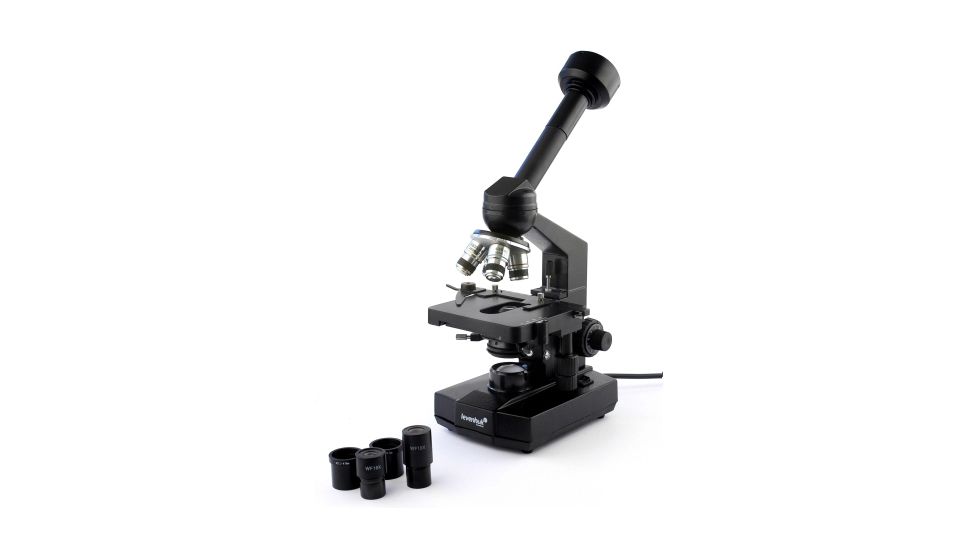

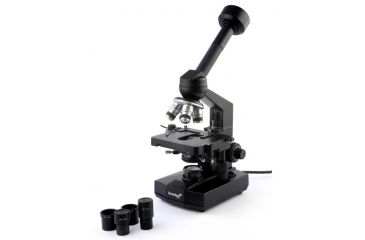

Levenhuk D320L Digital Professional Microscope
Tap Tap to Zoom
Product Discontinued by Manufacturer
Levenhuk D320L Digital Professional Microscope has been discontinued by Levenhuk and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Microscopes, Compound Microscopes yourself to try and find the perfect replacement for you!
Product Info for Levenhuk D320L Digital Professional Microscope
The Levenhuk D320L Digital Microscope adds technology to a classic microscope. This microscope is ideal for biochemical, pathologo-anatomic, cytologic, hematologic, urologic, dermatologic, biologic, and general clinical research in medical laboratories. This series is intended for making observations and morphological studies of specimens in transmitted light using the bright field method. It is ideal for medical laboratories and colleges that cannot afford the binocular model (1.5 times more expensive). The Levenhuk D320L Digital Biological Microscope is equipped with a built-in illumination bulb that allows you to adjust the brightness. Other features: Immersion, two-lens 1.25 Abbe condenser and four achromatic objectives. It is a professional laboratory microscope. With its affordable price, it features a coordinate moving stage, an Abbe condenser, integrated coarse and fine adjustment screws, sharpness adjustment, and wide field eyepieces. Included in the package is a Levenhuk C310 Digital Camera, 3M pixels, USB 2.0 exclusively designed for use with the microscope. The Levenhuk D320L Biological Microscope allows making a digital picture of an object as observed in the microscope, transferring it to the PC and saving it in the desired format.
Specifications for Levenhuk D320L Digital Professional Microscope:
| Head: | monocular |
| Optics material: | glass |
| Magnification, x: | 40-1600 |
| Eyepieces: | WF10x, WF16x |
| Objectives: | 4x, 10x, 40x, 100x |
| Revolving nosepiece: | 4 objectives |
| Condenser: | Abbe N.A. 1.25 with iris diaphragm |
| Focus: | coaxial with coarse and fine adjustment |
| Illumination: | halogen lamp 20w (110v) |
| Power supply: | 110V power cable |
| Camera model: | Levenhuk C310 Digital Camera |
| Megapixels: | 3 |
| Sensor: | 1/2 |
| Pixel size, µm: | 3.2x2.3 |
| Sensitivity, v/lux.sec@550 nm: | 1.5 |
| Video recording: | limited |
| Speed: | 11 fps |
| Active range, dB: | 75 |
| Usage location: | ocular tube (not eyepiece) |
| Image format: | BMP, TIFF, JPG, PICT, SFTL etc. |
| Spectral range, nm: | 400-650 |
| Method of exposure: | ERS |
| White balance: | auto/manual |
| Exposure control: | auto/manual |
| Software: | USB 2.0 driver, Levenhuk ToupView |
| Programmable options: | image size, brightness, exposure time |
| Camera slot: | USB 2.0, 480 Mb/s |
| System requirements: | Windows 2000/XP/2003/Vista/7/8, Linux 2.6, Mac OS X; USB port |
| Camera body material: | metal, painted black, cylindrical |
| Camera dimensions (max diameter of the cylinder part), mm: | 60 |
| Camera dimensions (max diameter of the cylinder part), in: | 2.4 |
| Camera power supply: | via USB 2.0 cable |
| Camera temperature range, °C: | -30... 70 |
| Camera temperature range, °F: | -22... 158 |
| Usage: | General use product.May be used by kidsover 3 years old. |
| Weight, kg: | 3.0 |
| Weight, lbs: | 6.6 |
| Maximal resolution: | 2048x1536 |
Package Contents:
- Levenhuk Monocular Microscope
- Levenhuk C310 Digital Camera
- 4 Objectives: 4x, 10x, 40x, 100x
- 2 Eyepieces: WF 10x, WF 16x
- 1.25 Abbe condenser
- Immersion oil
- Levenhuk ToupView software
- USB cable
- User manual and 3-year warranty
