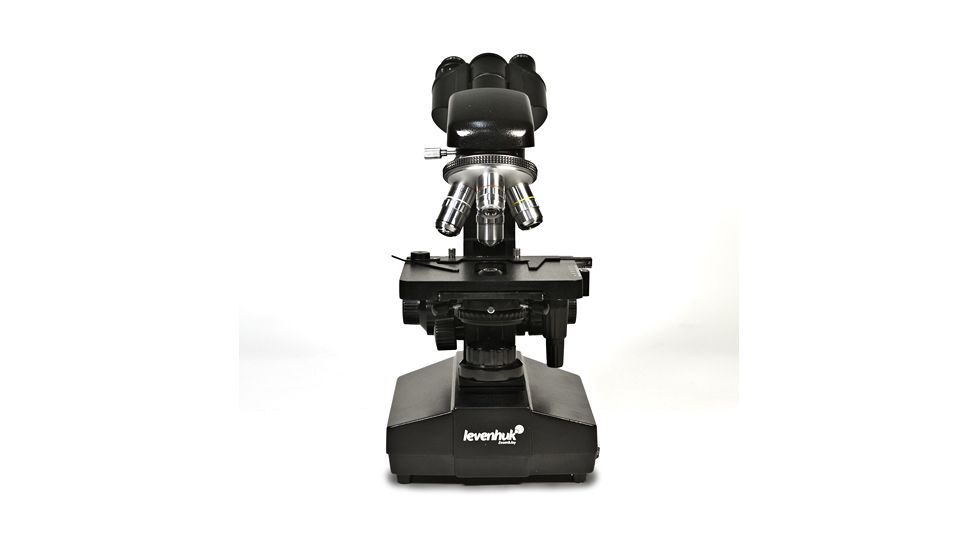

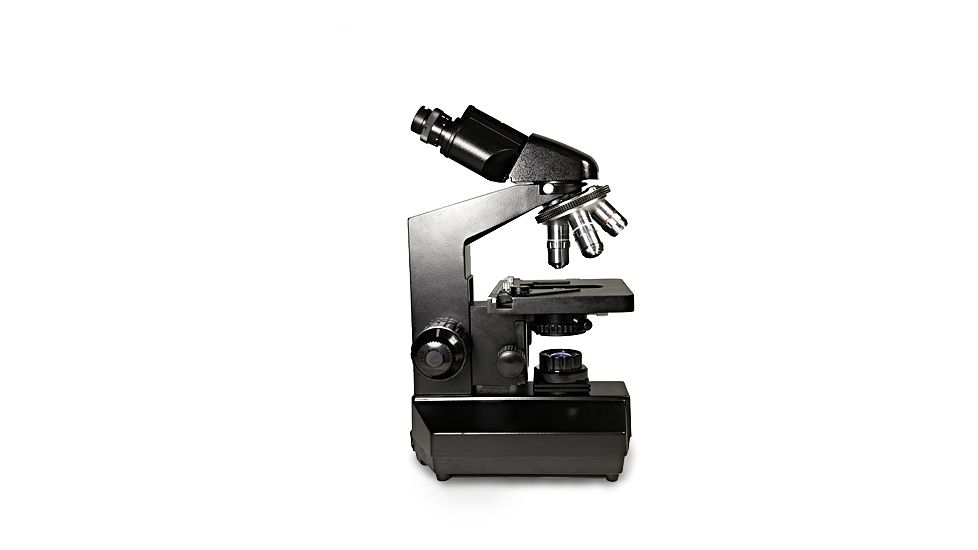

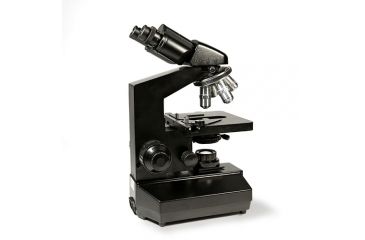

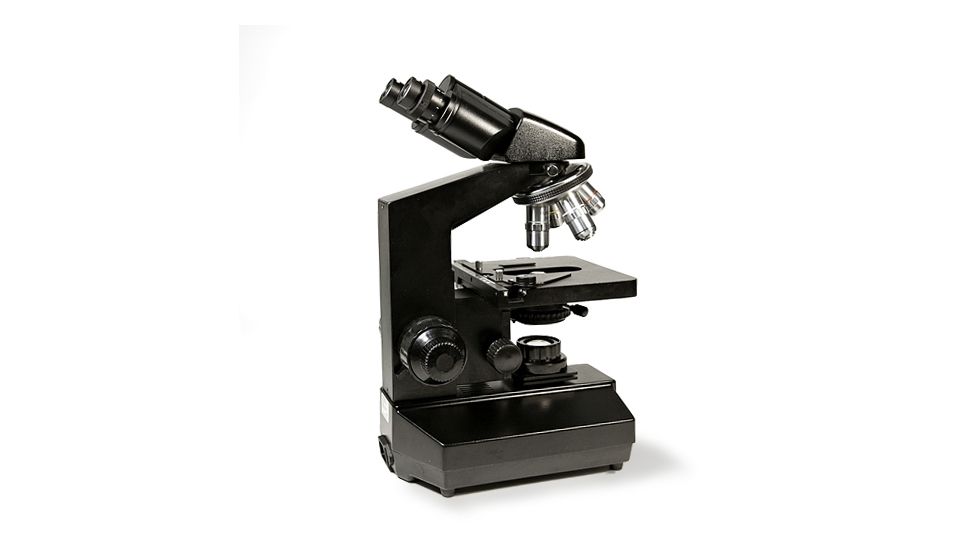

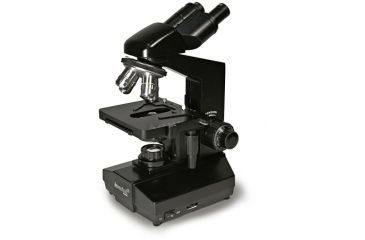

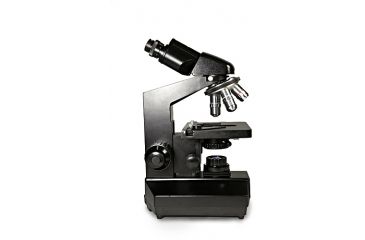

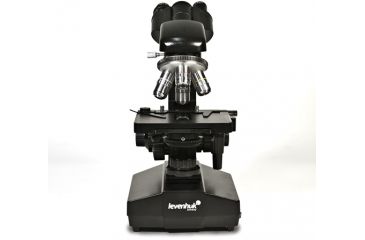

Levenhuk 850B Binocular Microscope

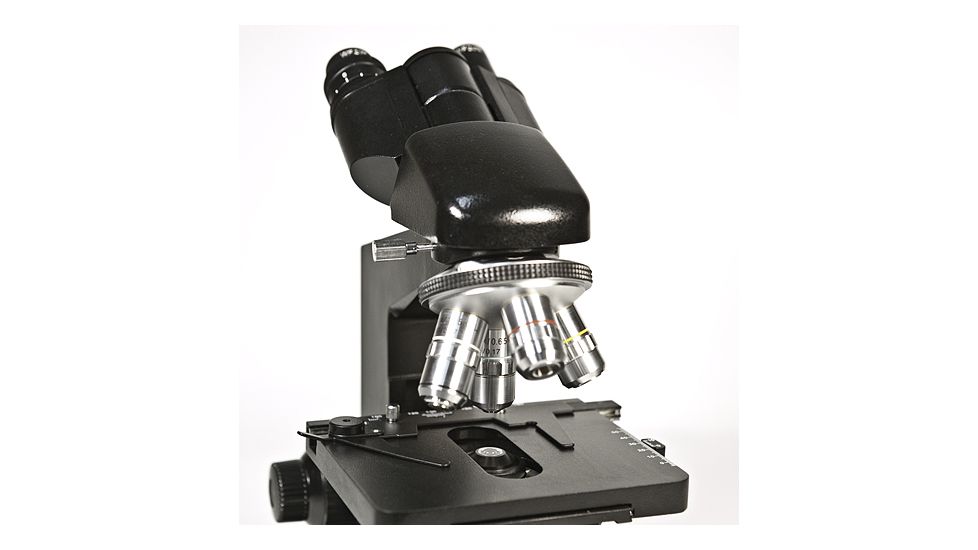

Levenhuk 850B Binocular MicroscopeBinocular head. Revolving nosepiece: 4 objectives. Magnification: 402000x.

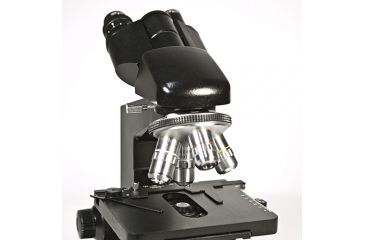

Levenhuk 850B Binocular Microscope is perfect for biological sciences and laboratory researches. The microscope also features binocular rotatable head with 30-degrees inclination, revolving nosepiece for four objectives, Koehler illumination system, allowing to adjust aperture and to control the amount of light entering the sample, variable magnification of 40x to 2000x, and a moving stage with dimensions of 5.5 x 6.1 inches.

Levenhuk 850B Binocular Microscope has integrated fine and coarse focusing systems for precise focusing with intervals of 0.00008 inch and 1 inch, respectively. Microscope's illumination source is a 6V/20W halogen lamp that provides enough light for observations and allows adjusting the brightness.

Features:

Magnification: 402000x

Oil immersion

Condenser: Abbe with iris diaphragm

Two-axes stage

Fine and coarse focusing

Halogen illumination with brightness adjustment

Household power supply

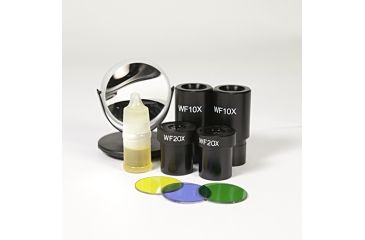

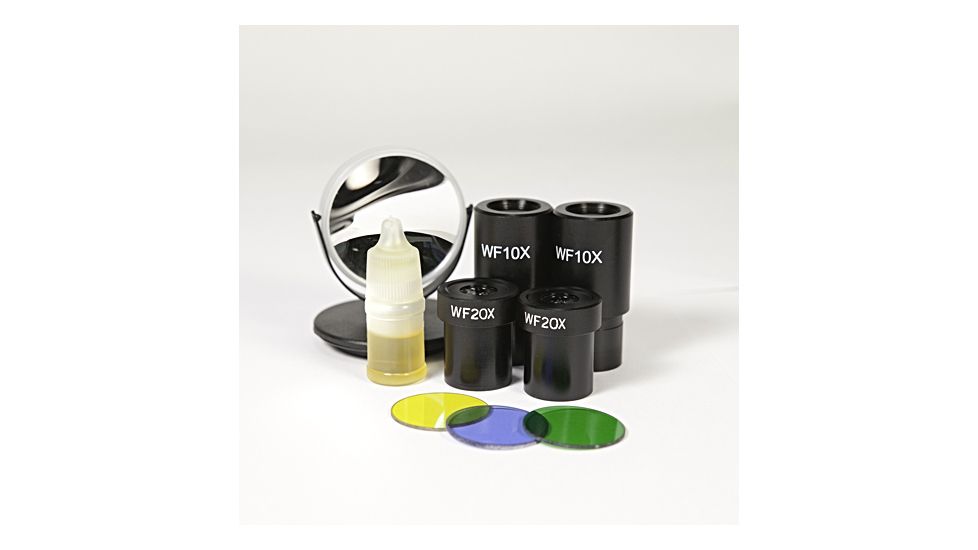

The kit includes:

Microscope stand with base

Binocular head

Plan achromatic objectives: 4x, 10x, 40x, 100x (oil)

Mirror

Eyepieces: paired, wide field WF10x, WF20x

Filters (blue, yellow, green)

Bottle of immersion oil

AC adapter

Dust cover

User manual

Specifications:

Head: binocular

Optics material: glass;

Magnification, x: 402000

Eyepieces: paired, wide field WF10x, WF20x

Objectives: plan achromatic 4x, 10x, 40x, 100x (oil immersion)

Revolving nosepiece: 4 objectives

Interpupillary distance, mm: 5575;

Stage, in: 5.5x6.1, moving stage

Stage moving range, using focusing mechanism, in: X-Y: 2.3x1.3

Eyepiece diopter adjustment, diopters: 5

Condenser: Abbe N.A. 1.25 with premium iris diaphragm

Focus: fine 0.002mm coarse 25mm

Backlight: halogen lamp 6V/20W, variable brightness

Power source: 110V power cable

Usage: General use product. May be used by kids over 3 years old

Application: Lab Research, Industrial

Specifications for Levenhuk 850B Binocular Microscope:

Features of Levenhuk 850B Binocular Microscope

• Binocular head. Revolving nosepiece: 4 objectives. Magnification: 402000x

Package Contents:

• Levenhuk 850B Binocular Microscope
